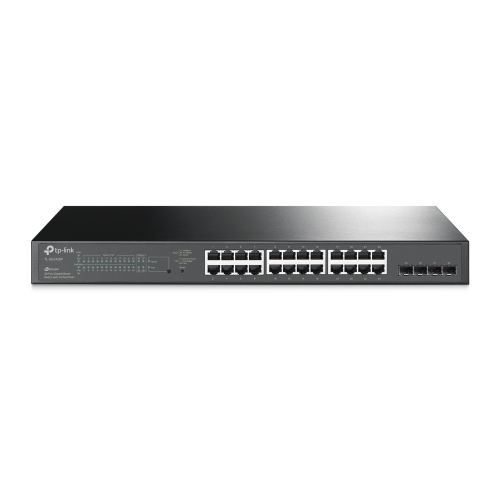

TP-LINK SWITCH 24P JETSTREAM GIGABIT POE+ (T1600G-28PS)

TP-LINK SWITCH 24P JETSTREAM GIGABIT POE+ (T1600G-28PS)

Feedback degli utenti

Prezzo:

€397,49 Iva Esclusa

Il prezzo indicato è riservato esclusivamente per gli acquisti online
Spese di trasporto:
A partire da € 6,93 Iva esenteMaggiori dettagli
Cod. art.: 110113
Marca: Tp-Link
Codice Produttore: TL-SG2428P
Codice a barre: 6935364030650
Se ordini oggi evasione: Prevista il 15/05/2025 fino a 6pz
Disponibilità: Totale a Magazzini Fornitori (78 PZ)
Quantità:

Servizi

StampaAvvisami quando diminuisce il prezzoCondividiRichiedi informazioni

Switch Smart 28 Porte Gigabit di cui 24 PoE+ | Jetstream by Omada

  • Switch Gigabit PoE+ -  Switch dotato di 28 porte Gigabit - 24 PoE+ e 4 SFP.
  • Power Budget totale -  Alimentazione PoE+ 802.3at/af-compliant fino a 250 W su tutte le 24 porte PoE+.*
  • Dispositivo integrato Omada SDN  - La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Router VPN SafeStream e Switch JetStream by Omada.
  • App Omada -  L' intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.
  • Routing Statico -  Gestione efficace delle risorse di rete, ottimizzazione traffico dati interno.
  • Massima Sicurezza -  IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, ecc.
  • Ottimizzazione video/voce -  Con funzionalità L2/L3/L4 QoS e IGMP snooping.
  • Compatibile IPv6  - IPv6 con supporto dual IPv4/IPv6 stack, MLD snooping e IPv6 neighbor discovery.
  • CARATTERISTICHE HARDWARE
    Standard e protocolliIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
    Interfaccia&bull 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    &bull 4× Gigabit SFP Slots
    Media&bull 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    &bull 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    &bull 1000BASE-X: MMF, SMF
    Numero ventole2
    Porte PoE+&bull Standard: 802.3at/af compliant
    &bull PoE+ Ports: 24 Ports
    &bull Power Supply: 250 W
    Dimensioni ( L x P x A )17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
    Tipo di montaggioRack Mountable
    Max Power Consumption&bull 32.1 W (110 V/ 60 Hz with no PD connected)
    &bull 308.6 W (110 V/ 60 Hz with 250 W PD connected)
    Max Heat Dissipation&bull 109.53 BTU/h (with no PD connected)
    &bull 1052.94 BTU/h (with 250 W PD connected)
    PRESTAZIONI
    Bandwidth/Backplane56 Gbps
    Packet Forwarding Rate41.7 Mpps
    Tabella ARP8K
    Buffer (pacchetti)4.1 Mbit
    Jumbo frame9KB
    CARATTERISTICHE SOFTWARE
    QoS (Quality of Service)&bull 802.1p CoS/DSCP priority
    &bull 8 priority queues
    &bull Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    &bull Queue Weight Config
    &bull Bandwidth Control
    - Port/Flow based Rating Limit
    &bull Smoother Performance
    &bull Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    Funzionalità L2 e L2+&bull 16 IP Interfaces
    - Support IPv4/IPv6 Interface
    &bull Static Routing
    - 32 IPv4/IPv6 Static Routes
    &bull DHCP Server
    &bull DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    &bull DHCP L2 Relay
    &bull Static ARP
    &bull Proxy ARP
    &bull Gratuitous ARP
    &bull Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports
    per group
    &bull Spanning Tree Protocol
    - 802.1D STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter/Protect,
    Root Protect
    &bull Loopback Detection
    &bull Flow Control
    - 802.3x Flow Control
    &bull Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Flow-Based
    - Ingress/Egress/Both
    &bull Device Link Detect Protocol (DLDP)
    &bull 802.1ab LLDP/ LLDP-MED
    VLAN&bull VLAN Group
    - Max. 4K VLAN Groups
    &bull 802.1Q tag VLAN
    &bull MAC VLAN
    &bull Protocol VLAN
    &bull GVRP
    &bull Voice VLAN
    ACL (Access Control List)&bull Support up to 230 entries
    &bull Time-Range
    - Time Slice
    - Week Time-Range
    - Absolute Time-Range
    - Holiday
    &bull Time-based ACL
    &bull MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    &bull IP ACL
    - Source IP
    - Destination IP
    - IP Protocol
    - TCP Flag
    - TCP/UDP Source Port
    - TCP/UDP Destination Port
    - DSCP/IP TOS
    &bull IPv6 ACL
    &bull Combined ACL
    &bull Rule Operation
    - Permit/Deny
    &bull Policy Action
    - Mirror
    - Rate Limit
    - Redirect
    - QoS Remark
    &bull ACL Rules Binding
    - Port Binding
    - VLAN Binding
    &bull Actions for flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Sicurezza&bull AAA
    &bull 802.1X
    - Port based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and
    accountability
    &bull IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    &bull IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    &bull IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    &bull DoS Defend
    &bull Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    &bull Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    &bull Port Isolation
    &bull Secure web management through HTTPS with
    SSLv3/TLS 1.2
    &bull Secure Command Line Interface (CLI)
    management with SSHv1/SSHv2
    &bull IP/Port/MAC based access control
    IPv6&bull IPv6 Static Routing and ACL
    &bull IPv6 Dual IPv4/IPv6
    &bull IPv6 Interface
    &bull Multicast Listener Discovery (MLD) Snooping
    &bull IPv6 neighbor discovery (ND)
    &bull Path maximum transmission unit (MTU) discovery
    &bull Internet Control Message Protocol (ICMP)
    version 6
    &bull TCPv6/UDPv6
    &bull IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet(v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    GESTIONE
    Omada AppYes
    Centralized Management&bull Omada Cloud-Based Controller
    &bull Omada Hardware Controller (OC300)
    &bull Omada Hardware Controller (OC200)
    &bull Omada Software Controller
    Cloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Management Features&bull Web-based GUI
    &bull Command Line Interface (CLI) through telnet
    &bull SNMPv1/v2c/v3
    &bull SNMP Trap/Inform
    &bull RMON (1,2,3,9 groups)
    &bull SDM Template
    &bull DHCP/BOOTP Client
    &bull Dual Image, Dual Configuration
    &bull CPU Monitoring
    &bull Cable Diagnostics
    &bull EEE
    &bull SNTP
    &bull System Log
    ALTRO
    CertificazioneCE, FCC, RoHS
    Contenuto della confezioneTL-SG2428P
    &bull Power Cord
    &bull Installation Guide
    &bull Rackmount Kit
    &bull Rubber Feet
    Requisiti di sistemaMicrosoft® Windows® XP, Vista&trade or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare® , UNIX® or Linux.
    Ambiente&bull Operating Temperature: 0&ndash 50 ℃ (32&ndash 122 ℉)
    &bull Storage Temperature: -40&ndash 70 ℃ (-40&ndash 158 ℉)
    &bull Operating Humidity: 10&ndash 90% RH non-condensing
    &bull Storage Humidity: 5&ndash 90% RH non-condensing
