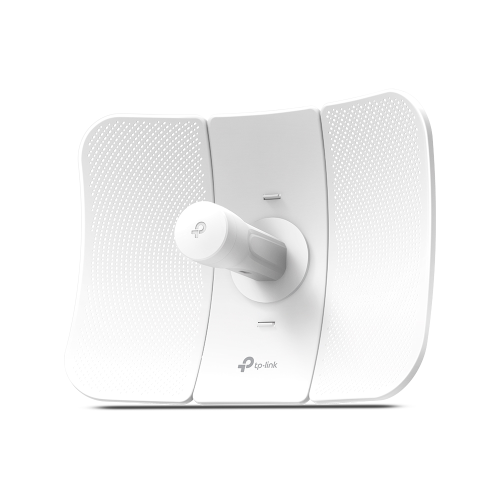

&bull 802.11ac fino a 867Mbps in 5GHz
&bull Antenna direttiva ad alto guadagno 23dBi ideale per collegamenti a lunga distanza
&bull Struttura robusta con assemblaggio rapido a incastro per la massima stabilità anche in condizioni di forte vento
&bull Certificazione IP65 contro le intemperie, protezione da scariche elettriche 15 kV ESD e 6 kV
&bull Gestione centralizzata con software gratuito Pharos Control
&bull Supporto Passive PoE per installazione flessibile.
| CARATTERISTICHE HARDWARE |
|---|
| Processore | Qualcomm 750MHz CPU, MIPS 74Kc |
|---|
| Memoria | 128 MB DDR2 RAM, 16 MB Flash |
|---|
| Interfaccia | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button |
|---|
| Alimentazione | Passive Power over Ethernet via LAN (+4,5pins -7,8pins)
Voltage range: 16-27V DC |
|---|
| Dimensioni ( L x P x A ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
|---|
| Guadagno antenna | 23 dBi |
|---|
| Ampiezza del diagramma di emissione | 9° (Azimuth)/7° (Elevation) |
|---|
| Sicurezza | 15 KV ESD Protection
6 KV Lightning Protection |
|---|
| Enclosure | Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design |
|---|
| CARATTERISTICHE WIRELESS |
|---|
| Standard wireless | IEEE 802.11a/n/ac |
|---|
| Velocità wireless | Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic) |
|---|
| Frequenza | 5.15&ndash 5.85 GHz |
|---|
| Potenza di trasmissione | Max. 27 dBm (Adjustable power by 1dBm) |
|---|
| CARATTERISTICHE SOFTWARE |
|---|
| Configurazione di rete | WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding |
|---|
| Configurazioni wireless | Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP |
|---|
| Gestione | Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server |
|---|
| Tool di sistema | Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment |
|---|
| Ottimizzazioni di sistema | Optimized IGMP Snooping / Proxy for multicast applications |
|---|
| CARATTERISTICHE ADATTATORE POE |
|---|
| Dimensioni ( L x P x A ) | 85.8× 43.9× 29.7 mm |
|---|
| Interfacce | 1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
|---|
| Tasto | Remote Reset Button |
|---|
| Indicatori di carica LED | Green |
|---|
| Input | 100-240VAC, 50/60Hz |
|---|
| Output | 24VDC, 0.5A Max
+4, 5pins -7, 8pins. (Support up to 60m Power over Ethernet) |
|---|
| Efficienza | > 84.29% |
|---|
| Certificazioni | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
|---|
| ALTRO |
|---|
| Certificazione | CE, FCC, RoHS, IP65, IC |
|---|
| Contenuto della confezione | Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide |
|---|
| Requisiti di sistema | Microsoft Windows 98SE, NT, 2000, XP, Vista&trade or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
|---|
| Ambiente | Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
|---|
